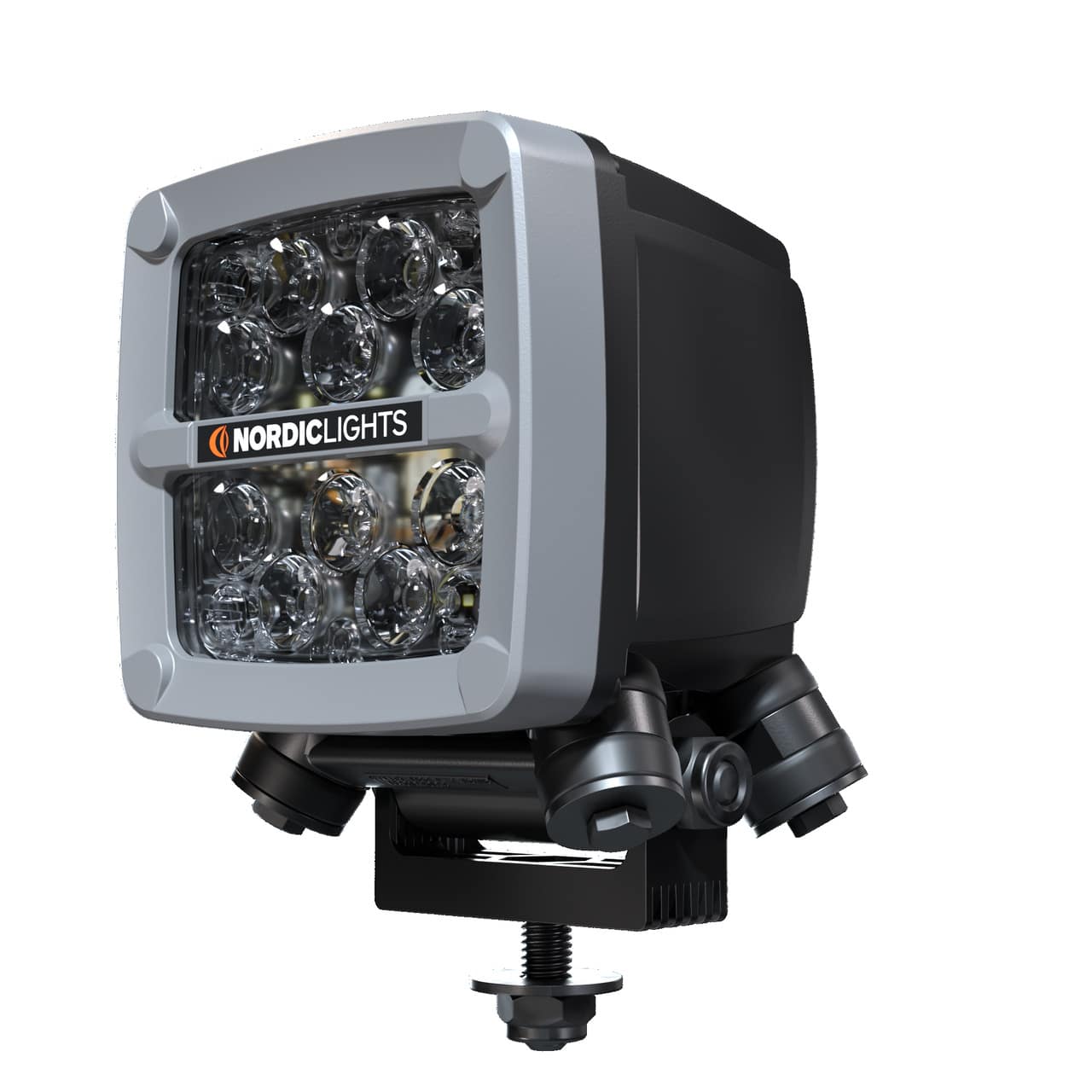

Scorpius LED XTR 4500 QD – HighBeam

Scorpius LED XTR 4500 QD 24V 40W HighBeam

De Scorpius LED XTR 4500 QD is een hoogwaardige 24 V LED-werklamp ontworpen voor de zwaarste omstandigheden. Dankzij het innovatieve QUAKE Damping-systeem biedt deze lamp uitzonderlijke weerstand tegen trillingen en schokken, terwijl hij een operationele lichtopbrengst van ca. 4200 lumen levert. Deze lamp is de opvolger van de Scorpius N4401 QD en ideaal voor toepassingen in mijnbouw, zware industrie, off-road en veeleisende werkomgevingen.

Waarom kiezen voor de LED Scorpius XTR 4500 QD

• QUAKE Damping system for maximum vibration protection
• Tempered glass lens: resistant to heat, scratches and UV damage
• No compromises: 24 V version only (reduces AC versions and potential theft sensitivity)
• Excellent lumen-per-watt ratio (efficiency)
• Colored edges (bezels) for quick recognition of the light image / pattern
• Robust design with high protection class(IP68 / IP6K9K)
• Strong EMC protection for minimal electromagnetic interference
• Aimed at harsh conditions (mining, heavy industrial use)
• 5-year warranty on light output and performance

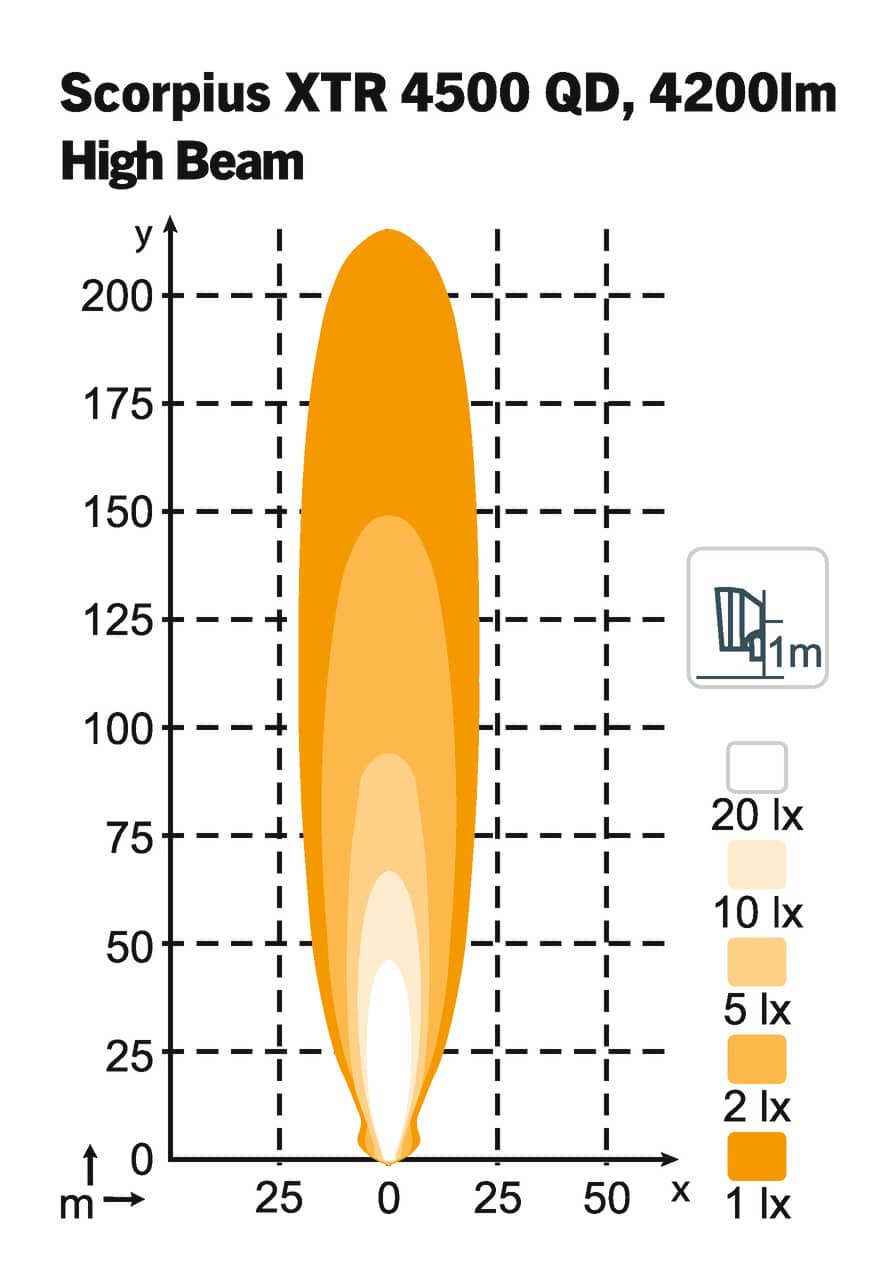

• High Beam advantage– extra far range and high intensity

Applications

• Off-road vehicles (dump trucks, haulers)
• Implements in heavier off-road environments
• Heavy industrial machinery (excavators, crushers)
• Earth movers, bulldozers
• Agricultural applications in extreme conditions
• Mining (underground, tunnels)
• Any application where vibration, dust, heat and challenging conditions are normal

Warranty & certifications

• 5-year factory guarantees on light output
• EMC/standards: CISPR 25, EN12895, ISO 13766, ISO 14982, ISO 7637-2 (standard entries for high-end work lamps).
• Salt spray test: 240 hours according to ISO 9227
• Temperature range and overheating protection (-40 °C to +85 °C)
• IP6K9K rating (high pressure / steam cleaning resistant)
• Vibration / shock tests: 20 Grms en 60 G impacttests

Additional info

• Specifications are nominal values; actual output varies depending on lens color/conditions
• Cleaning / maintenance: tempered glass makes cleaning easier, and prevention of lens distortion at high temperatures
• Easy mounting / Note the mounting angle so that light is used optimally without glare
• Cleaning / maintenance: tempered glass makes cleaning easier, and prevention of lens distortion at high temperatures
• Available from stock
