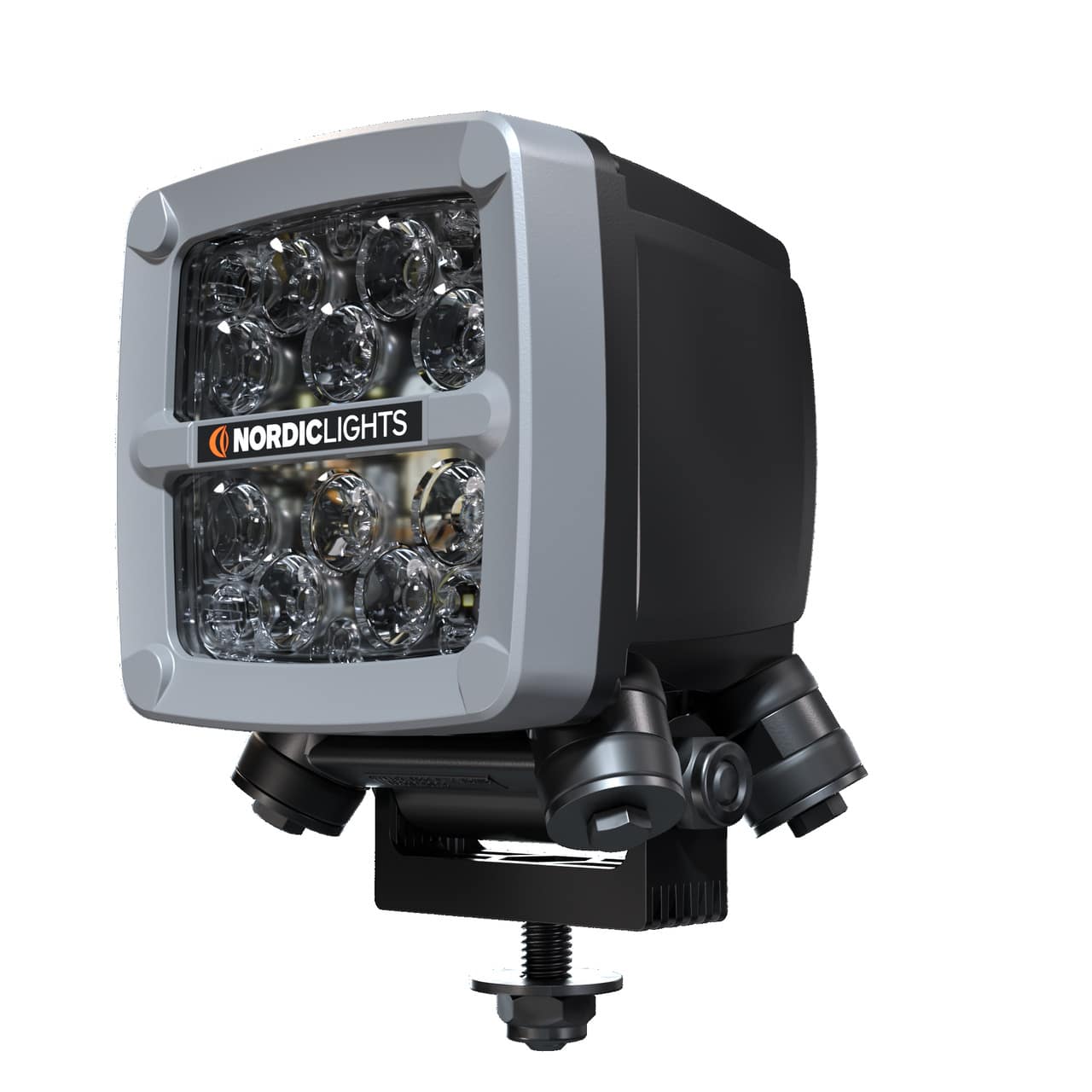

Scorpius LED XTR 3500 QD – High Beam

Scorpius LED XTR 3500 QD High Beam

The Nordic Lights Scorpius LED XTR 3500 QD is an extremely robust 24 V work lamp that provides powerful illumination with an operational light output of approximately 3,200 lumens. The lamp is equipped with the innovative QUAKE Dampening system, which takes vibration and shock protection to a new level. This makes the Scorpius XTR 3500 QD ideal for vehicles and machinery operating under extreme conditions.This work light is available in a variety of light images, including High Beam, Wide Flood and Flood, so that the light distribution always perfectly matches the application.

Why choose the Scorpius LED XTR 3500 QD

• QUAKE Dampening System: absorbs vibrations up to 20 Grms for maximum service life

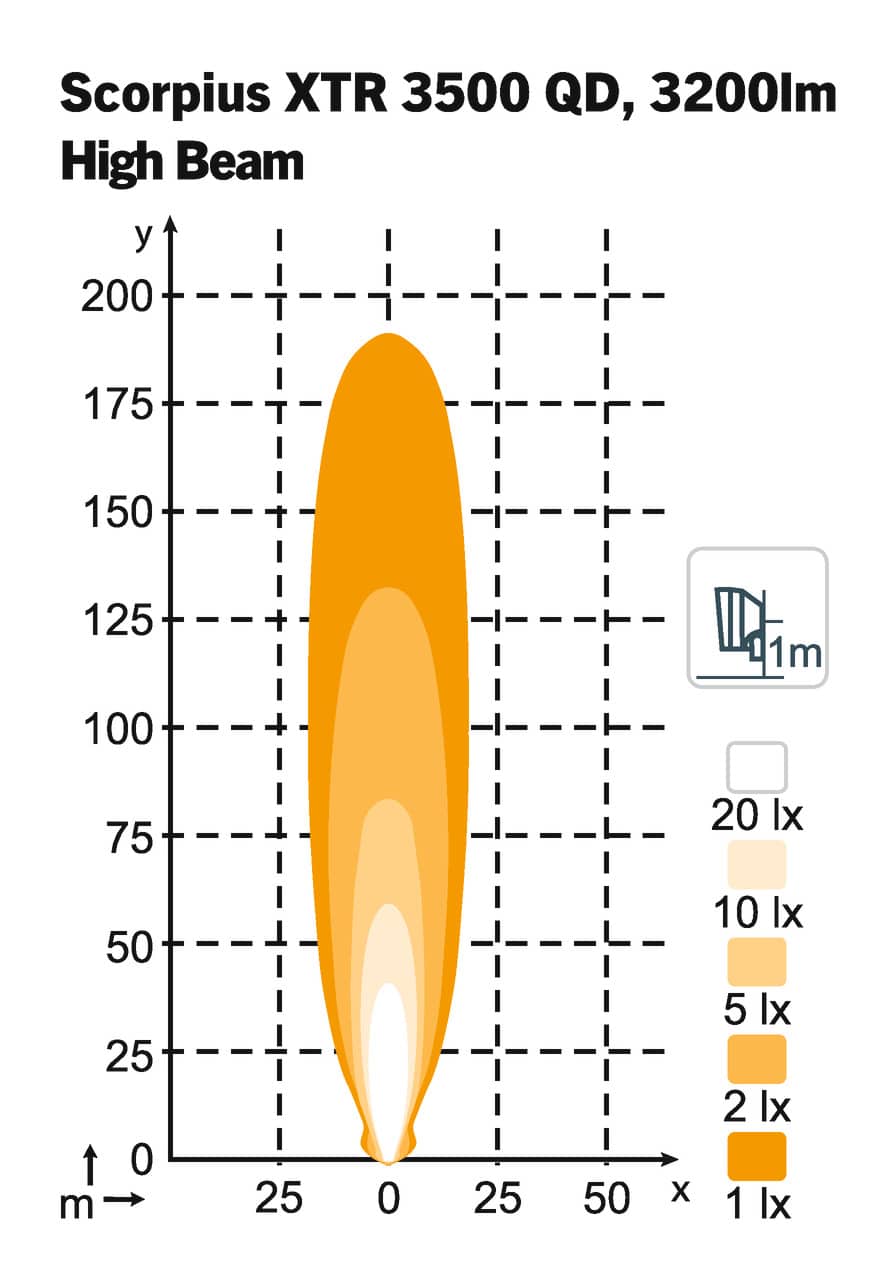

• High Beam light image: focused beam for maximum distance illumination
• Compact size with high light output (3,200 lumens operational)
• Rugged aluminum housing with efficient heat dissipation
• Tempered glass lens – resistant to heat, UV rays and scratches
• IP68 / IP6K9K – completely dustproof and waterproof
• Designed for 24 V systems – ideal for heavy-duty vehicles and industrial applications
• 5-year warranty on light output and performance
• Long service life, minimal maintenance requirements

Applications

• Construction and earthmoving machinery
• Mining and transfer vehicles
• Industrial vehicles with high vibration loads
• Agricultural machinery and off-road vehicles
• Underground applications (tunnels, mines)
• erk vehicles where focused, bright remote light is required

Warranty & certifications

• 5-year factory guarantees on light output
• Vibration testing: 20 Grms (10-2000 Hz)
• Shock resistance: tested to 60 G
• Corrosion resistance: 240-hour salt spray test (ISO 9227)
• MC / electrical standards: CISPR 25 Class 5, EN 12895, ISO 13766, ISO 7637-2
• IP rating: IP68 / IP6K9K

Additional info

• QUAKE technology dampens vibrations internally via an innovative suspension system
• Glass lens prevents melting and discoloration at high temperatures
• Regular cleaning of lens and cooling fins extends service life
• Correct mounting angle prevents glare and maximizes light output
• Available in various light images for different applications

Related Products
This work light is the replacement for the Scorpius N4401 QDOff-road vehicles (dump trucks, haulers)

• Scorpius XTR 3500 QD Wide Flood – wide dispersion of light
• Scorpius XTR 4500 QD High Beam – higher light output (4,200 lumens)
• Scorpius PRO 4500 Wide Flood – alternative without QUAKE system
• Accessories: mounting brackets, Deutsch connector cables
