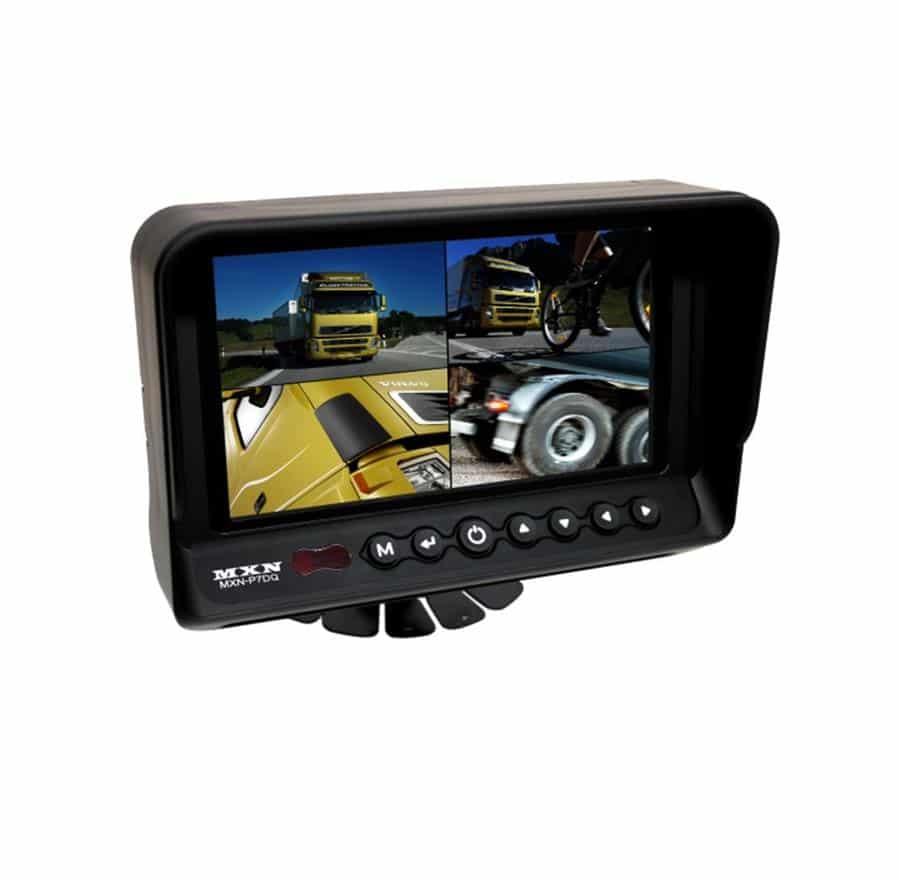

MXN P7DQ Monitor Digital LCD 7-inch

View quotation request
Back to overview

Product Description



  • High resolution 7″ digital TFT LCD
  • Automatic heating system (below 0ËšC)
  • Shutter camera support and camera heater support
  • Water resistant (IP67)

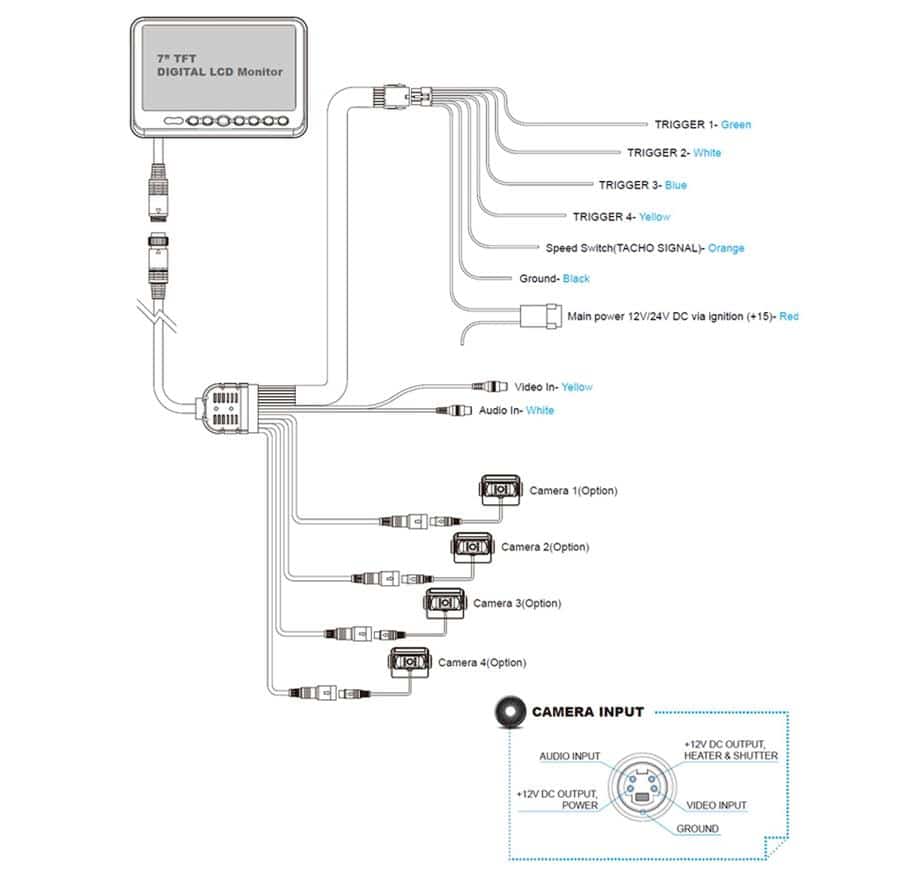

  • 4 camera inputs & 1 AV input
  • Automatic brightness control
  • Auto Scan function
  • Automatic ON/OFF
  • NTSC/PAL compatible
  • Multilingual OSD control
  • Tamper-proof function
  • Built-in speaker
  • Electronic distance marker (parking line and horizontal line)
  • Input voltage (DC 10V ~ 30V)
  • Bracket rails and Heavy Duty mounting option
  • Speedswitch function via tacho signal (in case of front view)
  • Sun visor – included

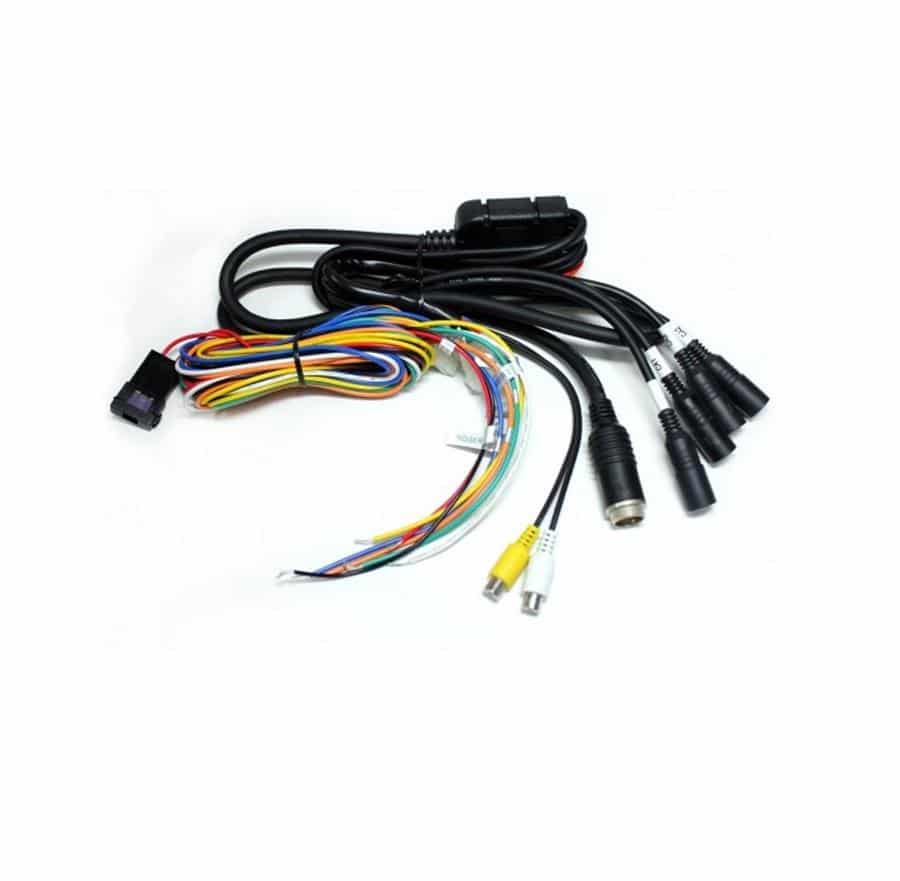

  • All connections via one multi-cable (no external control box)

Technical Specifications:

  • Input power: 10V ~ 30V DC
  • Power consumption: max. 15 watts.
  • Video system: NTSC, PAL signal compatible
  • Panel: 7″ digital
  • Format: 16:9 wide
  • Brightness: 400cd/m2

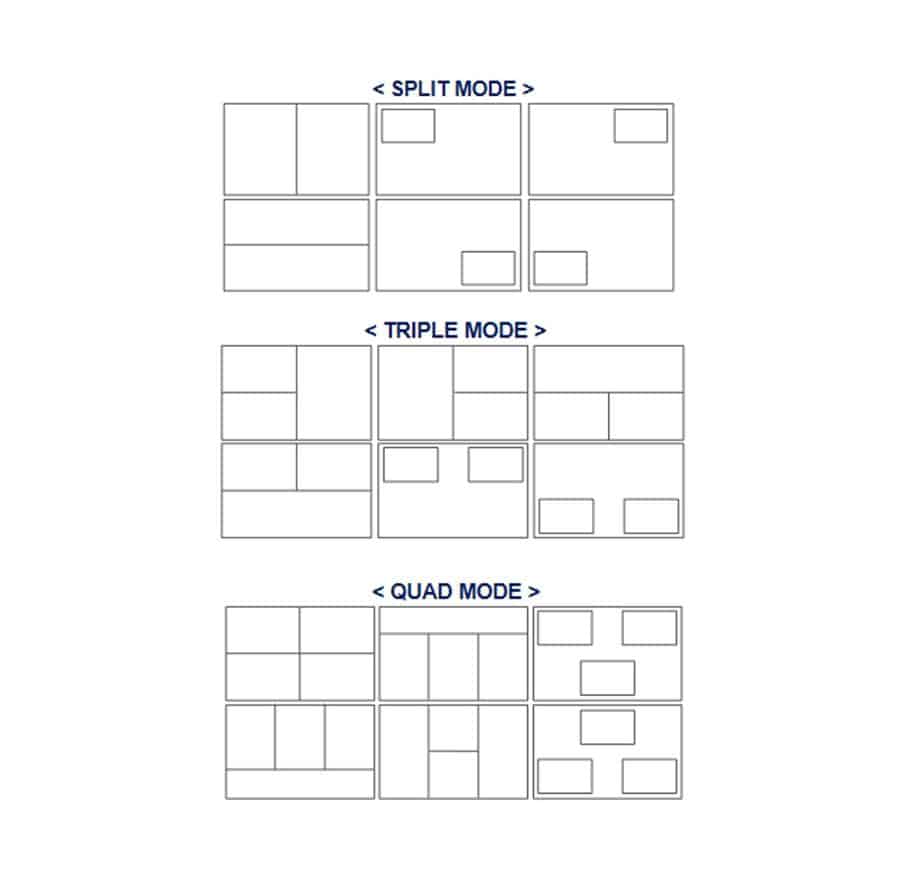

  • Display mode: single / split / triple / quad / PIP
  • Camera input (4CH): Mini DIN 4P, 1Vp-p 75
  • A/V input: RCA audio/video
  • Operating temperature: -20 ÌŠ C ~ 75 ÌŠ C
  • Storage temperature: -30 ÌŠ C ~ 85 ÌŠ C



  • Dimensions and weights:
  • Width: 193 mm
  • Height: 132 mm
  • Depth: 50.5 mm
  • Weight: approx. 60 grams (740 grams with sun visor)

P7DQ Monitor Digital LCD 7 | MXN

Monitor suitable for 4 camera connections.
The MXN P7DQ Monitor Digital LCD 7-inch gives you good overview during tricky maneuvers with your vehicle.

The MXN P7DQ Monitor Digital LCD 7-inch is an advanced and versatile monitor with a sharp and vivid 7-inch LCD screen.
With a wide color gamut and impressive color accuracy, this monitor provides rich and vivid images.
Its wide viewing angle and various digital connections, such as HDMI, make it easy to connect to various devices.

With advanced image adjustment features and a compact size, this monitor is ideal for professionals, photographers and content creators on the go.
The MXN P7DQ Monitor Digital LCD offers an unparalleled visual experience with its impressive image quality and versatility .

Price

€ 522,00

All prices quoted are exclusive of VAT unless otherwise stated.

Request a quote

Specifications

Dimensions5,0 × 20,0 × 13,0 cm
Beeldkwaliteit

CVBS (Standard Definition)

Signaal

PAL/NTSC

Scherm Formaat

7

Aantal Camera-ingangen

4

Splitscreen

Yes

Draadloos

No

Touchscreen

No

IP Klasse

IP67

Parkeerlijnen

Yes

Geluid (speaker)

Yes

Product code

MX-MON-P7DQ

Eenheid

piece

Merk

MXN
