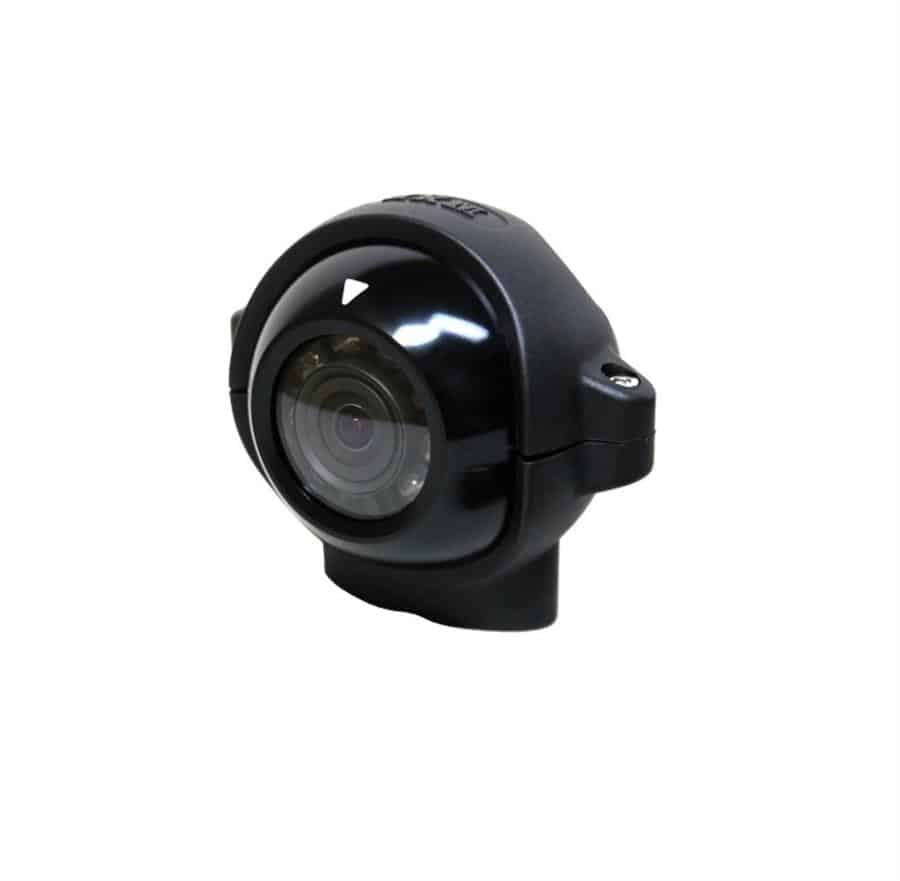

MXN 22CHD Sphere Camera 130°Rearview Camera

MXN 22C Bulb camera lens angle 130° | MXN

Key features:

• Compact Sphere Camera
• High-resolution CMOS camera (1.23 megapixels)
• 1/3.2″ high-resolution color CMOS image sensor
• IP69K waterproof rating
• Built-in infrared LEDs
• Automatic electronic iris
• IR LEDs ON/OFF function (via loop wire)
• Diagonal 130˚ Viewing Angle
• Normal/mirror image adjustable
• Built-in microphone (for unidirectional audio)
• Multifunctional (front view, side view, rearview mirror, surveillance, etc.)
• Built-in automatic heating (below +10˚C)
• Anticorrosive 3-fold coating
• Waterproof screw connector, 4-pin mini-DIN
• Temperature range -40˚C to +80˚C
• Vibration resistant (10G)
• ECE R10.05 approved (EMC)

Available in various models, MXN 22C color cameras with lens angle 40°/78°/130°/160°.
The MXN22C color cameras are literally all-round.
With the mounting bracket, these globe cameras are quickly installed.
The aluminum housing is triple-coated and all mounting hardware is stainless steel.

MXN Camera type MXN22C color cameras

The MXN22C color cameras are literally all-round.
With the mounting bracket, these globe cameras are quickly installed.
The aluminum housing is triple-coated and all mounting hardware is stainless steel 316.
When it gets too dark, the built-in infrared function automatically switches on (the image does turn black/white).
The camera’s built-in heater turns on as soon as it gets colder than +10°C.
This keeps the lens condensation-free.

The MXN22CW also has an additional button on the back, allowing switching between normal view and mirror image.
These cameras operate optimally at temperatures between -20°C and +70°C .

Technical Specifications:

• Waterproofness IP68
• Image sensor: 1/3.2″ Sony CMOS sensor (Exmor)
• Effective pixels: CVBS – PAL, 1.23 Megapixels, 1280(H) x 960(V)
• Resolution: 750 TV lines
• Synchronization system: internal
• Video output: 75Ω, 1.0Vp-p
• Audio: high-sensitivity C microphone
• S/N ratio: minimum 45dB (with AGC off)
• Minimum illumination: 0 Lux (IR LEDs on)
• Current consumption: DC 12V, 265mA (heater ON) – DC 12V, 165mA (heater OFF)
• Power range: DC 9V ~ DC 48V
• Heating power range: DC 9V ~ DC 12V
• Operating temperature: – 40 C to + 80 ̊C
• Lens Viewing Angle: 130 ̊ Diagonal, 102 ̊ Horizontal, 76 ̊ Vertical

Dimensions and weight:

• Φ 52 mm
• Width: 72 mm
• Depth: 52 mm
• Height: 63 mm incl.
  bracker
• Weight: approximately 215 grams
